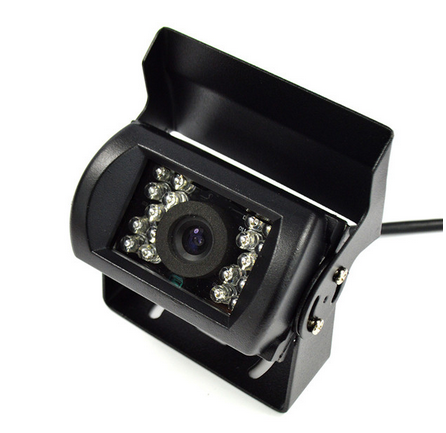

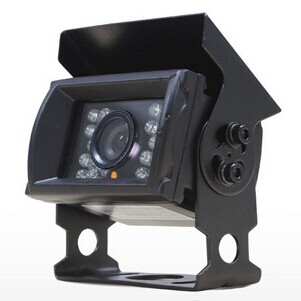

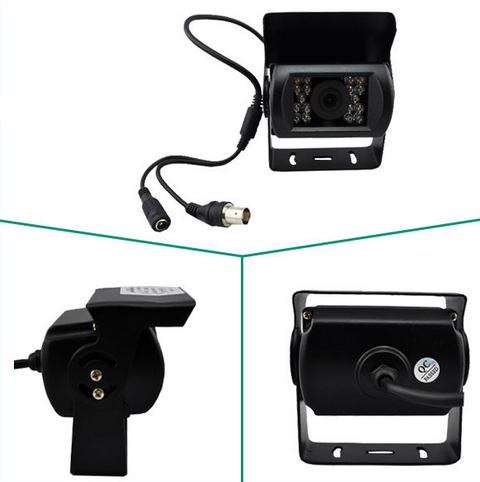

RECODA AHD Vehicle Camera Front View / Rear View Camera

RECODA AHD Vehicle Camera Front View / Rear View Camera Features: 1) Super waterproof for install outside the door of the car 2) Also can be made to mirror image to be hanged on the rear side of cars to view rear when reversing 3) High-qual

Send Inquiry

Features

Specifications

RECODA AHD Vehicle Camera Front View / Rear View Camera





Features:

1) Super waterproof for install outside the door of the car

2) Also can be made to mirror image to be hanged on the rear side of cars to view rear when reversing

3) High-quality infrared led has excellent night vision result in dark or night

4) 3.6mm wide angel lens view 120degree, or 2.0/2.5/2.8/6.0 mm lens optional.



Specifications:

Model NO

C801-AHD ( 1MP )

C801-AHD ( 1.3MP )

C801-AHD ( 2MP )

Type

Front / Rear view waterproof camera

Image Sensor

1/4” CMOS Sensor AR0130

1/3”CMOS Sensor AR0130

1/3 CMOS Aptina 0230

TV System

PAL/NTSC

Effective pixels

1MP

1.3MP

2MP

Picture Elements

1280(H)*720(V)

1280(H)*960(V)

1280(H)*1080(V)

S/N Ratio

More Than 44 dB

More Than 44 dB

More than 72 dB, (AGC Off)

Infrared Spectrum

850nm

N/A

850nm

Min. Illumination

0.01Lux(Color) / 0 Lux IR On

White Balance

Auto

Infrared LED

18 LEDS

Infrared LED Range

10-15M

Lens

Megapixel fixed Lens 3.6mm/6mm

Pan Adjusting

N/A

Tilt Adjusting

0-60 Degree

Power Consumption

110mA

80mA

210mA

Input Voltage

DC12V±10%

Weight

435g

Dimension

L69 x W76 x H78 mm

Video Output

1 Vp-p, 75ΩComposite, 4 ways Din Jack

Operating Temp

-10°C to +50°C

Waterproof Rating

IP68
